Accessories

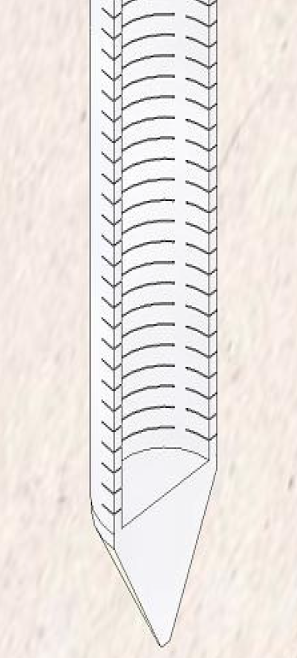

W70-WPT-ECO-1.5

The PVC 1.5” economy wellpoint is the industry standard for dewatering due to its light weight, durability, and affordability. Utilized in conjunction with punches or stingers and applicable sand filter packs, the economy wellpoint is compatible with a wide range of soils where groundwater needs to be controlled.

Specs: 3’ long x 1.5” diameter, schedule 40 PVC with 0.016” slots on three sides of the pipe.

W70-WPT-ECO-1.5WR

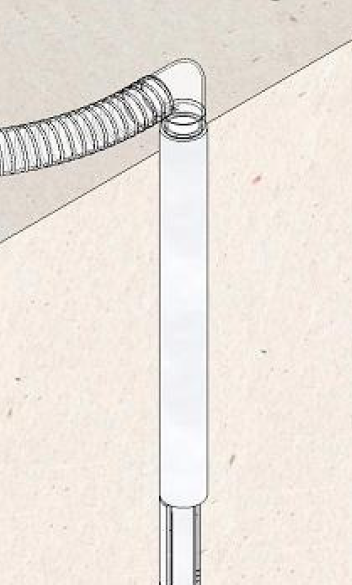

The PVC 1.5” economy wellpoint glued to 20' riser pipe is the industry standard for dewatering due to its light weight, durability, and affordability. Utilized in conjunction with punches or stingers and applicable sand filter packs, the economy wellpoint is compatible with a wide range of soils where groundwater needs to be controlled.

Specs: 3’ economy wellpoint screen glued to 20' class 160 PVC x 1.5” diameter, total length 23’

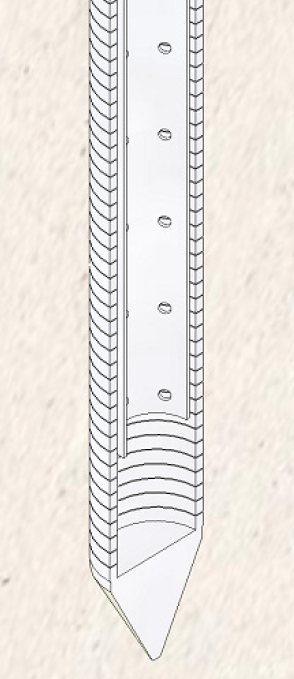

W70-WPT-PRE-1.5

The premium PVC wellpoint offers a built-in drop tube on top of the features that the economy wellpoint has to offer. This built-in drop tube routes groundwater to the bottom of the wellpoint to allow for maximum drawdown regardless of screen exposure above the water table.

Specs: 3’ long x 1.5” diameter, schedule 40 PVC with 0.016” slots on three sides of the pipe.

W70-WPT-PRE-1.5WR

The premium PVC wellpoint with riser pipe offers a built-in drop tube on top of the features that the economy wellpoint has to offer. This built-in drop tube routes groundwater to the bottom of the wellpoint to allow for maximum drawdown regardless of screen exposure above the water table.

Specs: 3’ premium wellpoint screen glued to 20' class 160 PVC x 1.5” diameter, total length 23’

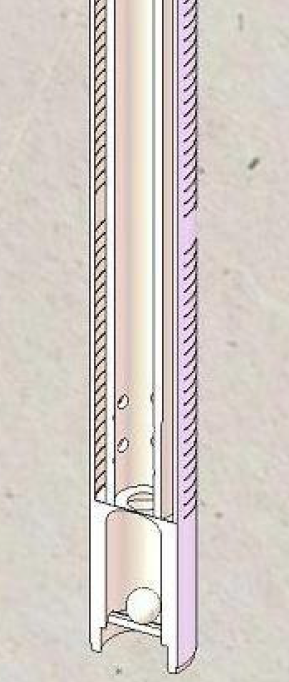

W70-WPT-GAT-1.5

The GAT wellpoint is PVC with a drop tube and with its flat bottom makes it capable of self-jetting. Suitable for a wide range of soil conditions where groundwater control is a must, the GAT wellpoint is well balanced option for durability and affordability. Its built-in drop tube routes groundwater to the bottom of the wellpoint to allow for maximum drawdown regardless of screen exposure above the water table. This inner drop tube also reduces dissipation of pressure through the screen, which allows for a more effective jet when utilizing the self-jetting feature for installation.

Specs: 3’ long x 1.5” diameter, schedule 40 PVC with 0.016” slots on three sides of the pipe.

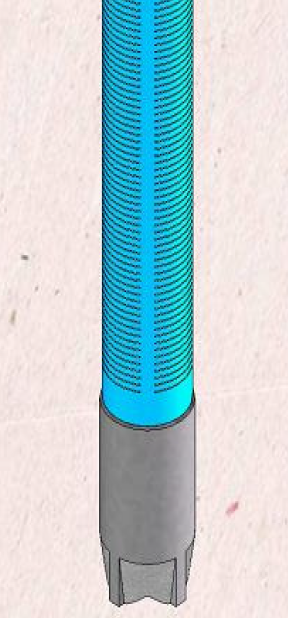

W70-WPT-STL-1.5I

The 2” self-jetting steel wellpoint features the toughest material construction to match the toughest soil conditions. Its durable construction allows for prolonged use on longer term dewatering projects as well as reuse capability over multiple installations. Its built-in galvanized steel drop tube routes groundwater to the bottom of the wellpoint to allow for maximum drawdown regardless of screen exposure above the water table. This inner drop tube also reduces dissipation of pressure through the screen. The drop tube and aluminum thrust generating head allows for a more effective jet when utilizing the self-jetting feature for installation.

Specs: 3’ long x 2” diameter, schedule 40 PVC with 0.016” slots on three sides of the pipe surrounding the galvanized steel drop tube.

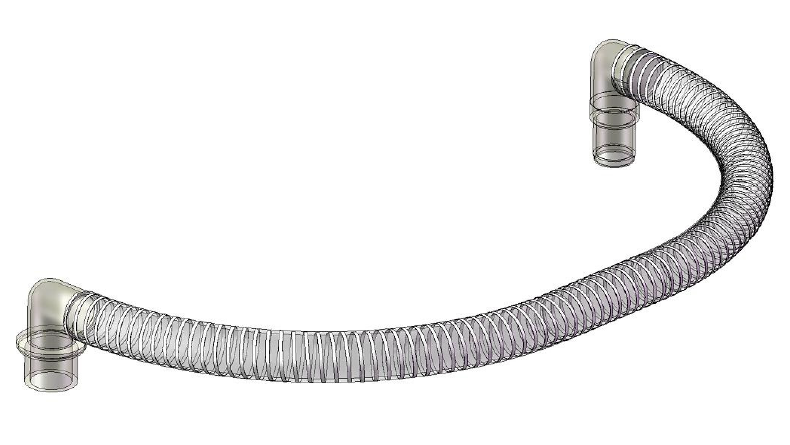

W70-SWING-1.5X3SD

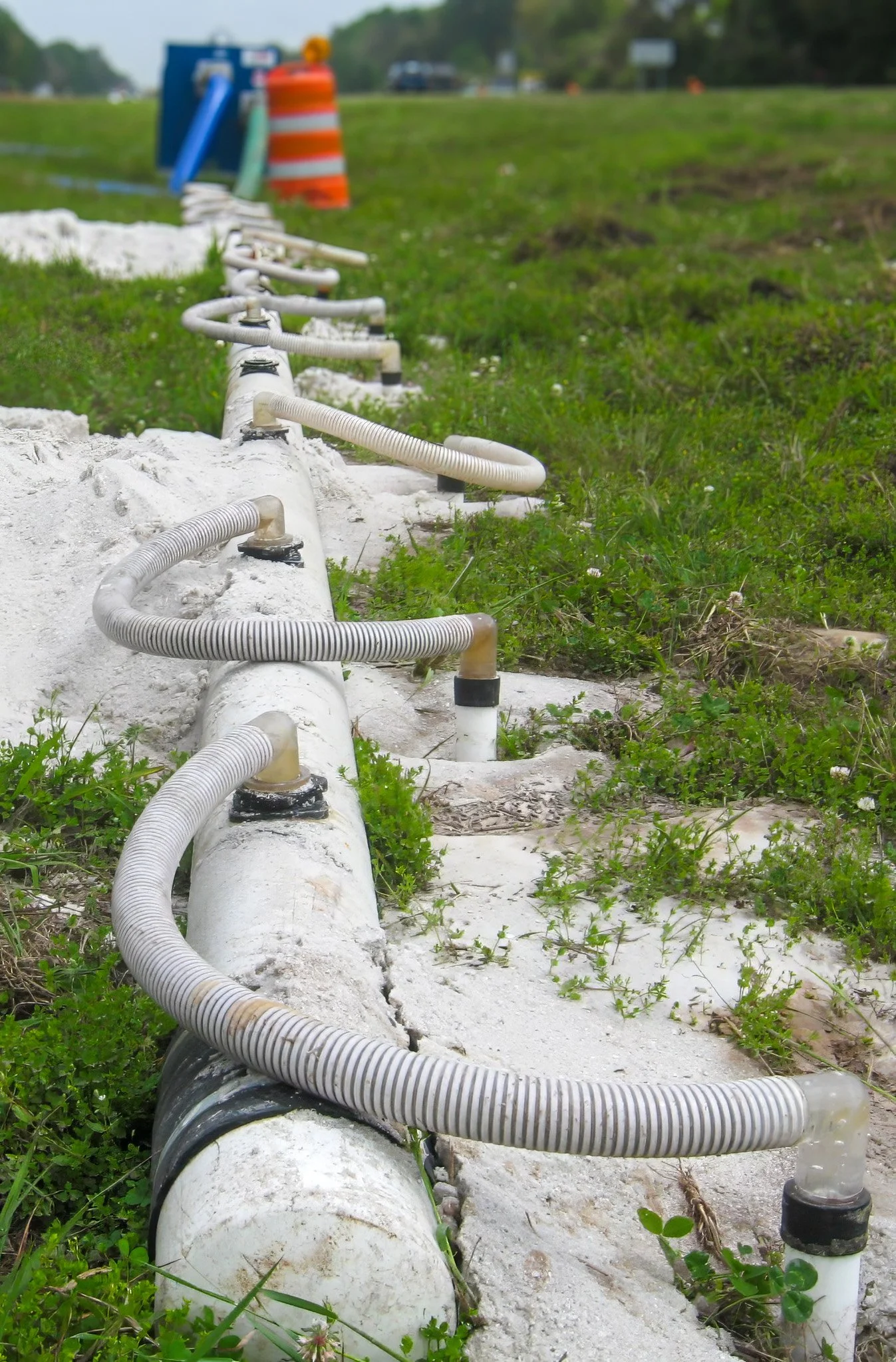

Swing joint made of clear flexible PVC hose reinforced with a white helix that connects the riser pipe to the header valve assembly. This is used with Thompson style header pipe.

Specs: 3’ long x 1.5” diameter with a large end to fit in the Thompson Header Valve and small end connect to the riser pipe.

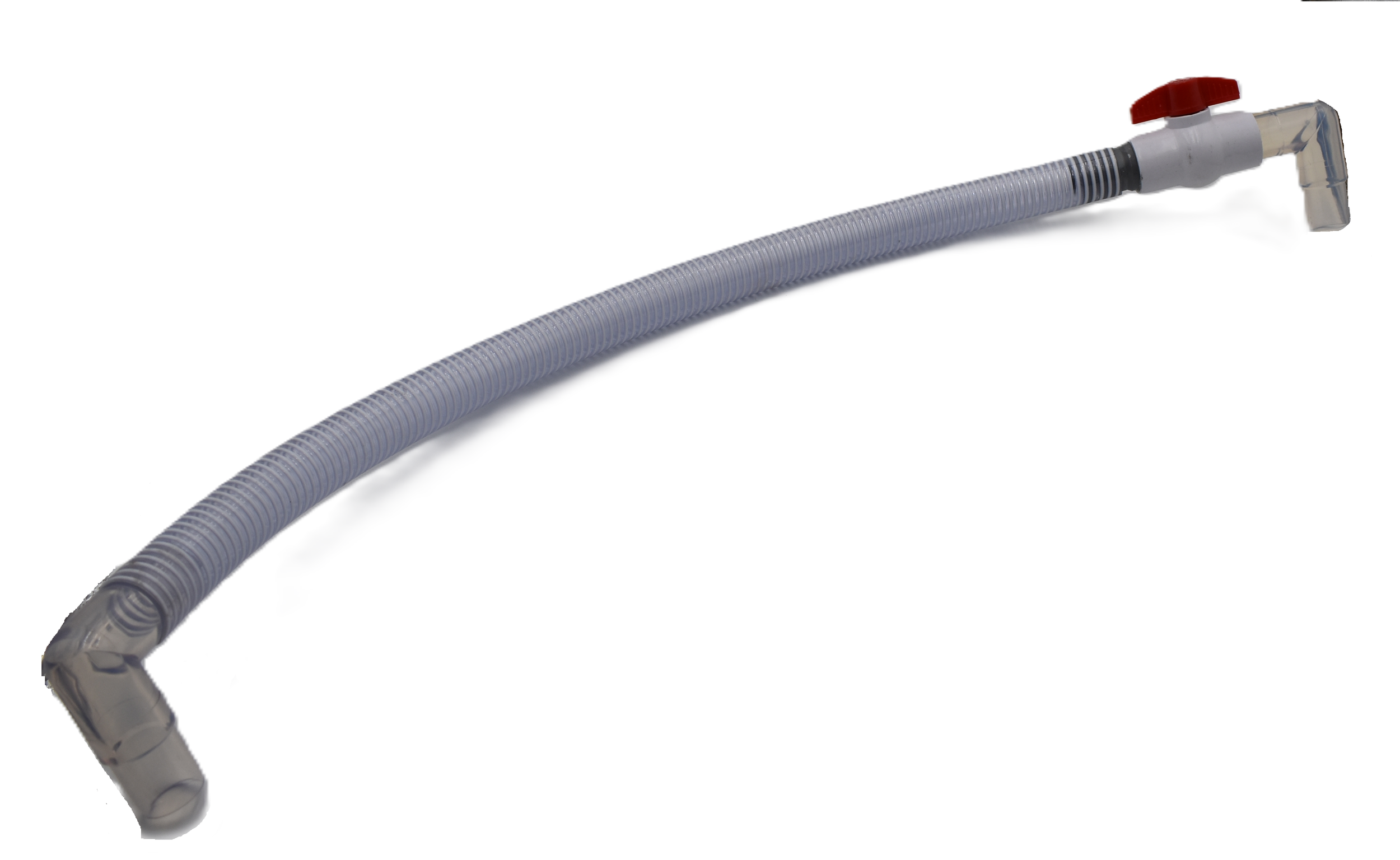

W70-SWING-1.5X3BV

Swing joint made of clear flexible PVC hose reinforced with a white helix that connects the riser pipe to the grommet in the header pipe.  This is used with grommet style header pipe.  The integral ball valve allows for control flow of air and water to the header pipe from the wellpoints.

Specs: 3’ long x 1.5” diameter with the same size ends.

W70-CPLG-HDR-6WS

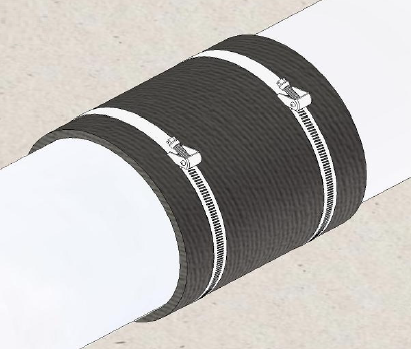

Flexible rubber sleeve with two stainless steel adjustable clamps to connect header pipes, caps, tees and elbows. Specs: 6" diameter.

W70-CPLG-HDR-8WS

Flexible rubber sleeve with two stainless steel adjustable clamps to connect header pipes, caps, tees and elbows.

Specs: 8" diameter.

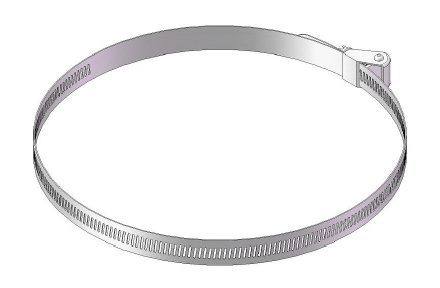

W70-HDRST-6SS

Ratchet straps are used to tighten pipe connections on the rubber header coupling.

Specs: Stainless steel 28" long x 1/2" wide

W70-HDRST-8SS

Ratchet straps are used to tighten pipe connections on the rubber header coupling.

Specs: Stainless steel 30" long x 1/2" wide

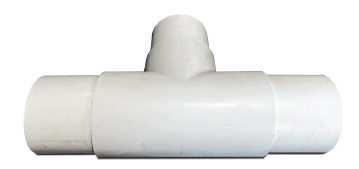

W70-TEE-PVC-6WN

6in PVC schedule 40 tee with 3- 8in PVC nipples for easy connection with header couplings to the wellpoint system.

W70-TEE-PVC-8WN

8in PVC schedule 40 tee with 3- 10in PVC nipples for easy connection with header couplings to the wellpoint system.

W70-CAP-PVC-6WN

6in PVC schedule 40 cap with one 8in PVC nipple for easy connection with header couplings to the wellpoint system.

W70-CAP-PVC-8WN

8in PVC schedule 40 cap with one 10in PVC nipple for easy connection with header couplings to the wellpoint system.

W70-FTG-JET-C

The steel jet fitting assembly attaches to the water source via the elbow, and then to a self-jetting wellpoint, where the water is pressurized through the tip of the wellpoint itself.

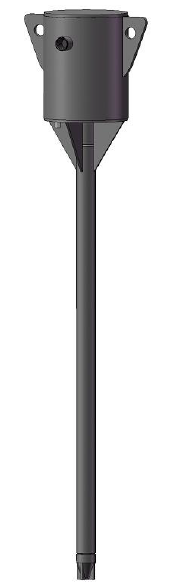

W70-2704-021

The steel jet punch is used for installing wellpoints into soft clay and sand. The punch head is attached to a bucket on an excavator or backhoe. Then a hose is connected to a pump to use as a water source.  The water goes through the shaft of the punch and forces the water in to the tip of the punch to create a hole for the wellpoint and riser.

Specs: 21’ total length, shaft 4” diameter, punch head 20” diameter

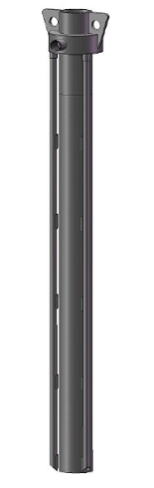

W70-2806-023

The 6in x 23ft jet casing is used for installing wellpoints in cohesive soil conditions, such as hard pan, hard clay and course rock, which allows sanding around the wellpoint to provide maximum flow to the pump.

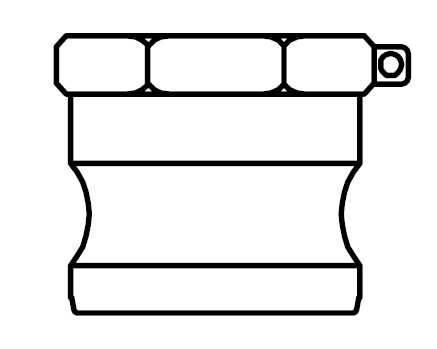

W70-CPLG-QK-4A

The camlock or cam and groove couplings are used to connect hoses to a pump or another piece of hose. The aluminum part A camlock is a male adaptor x female thread. 4" Male adaptor x Female Thread

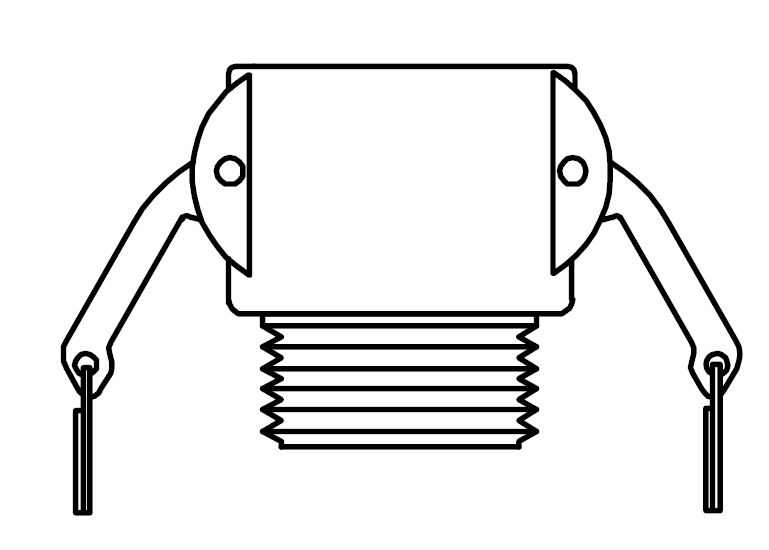

W70-CPLG-QK-4B

The camlock or cam and groove couplings are used to connect hoses to a pump or another piece of hose. The aluminum part B camlock is a female adaptor x male thread.  4" Female adaptor x Male Thread (MNPT)

W70-CPLG-QK-4D

The camlock or cam and groove couplings are used to connect hoses to a pump or another piece of hose. The aluminum part D camlock is a female adaptor x female thread. 4" Female adaptor x Female Thread

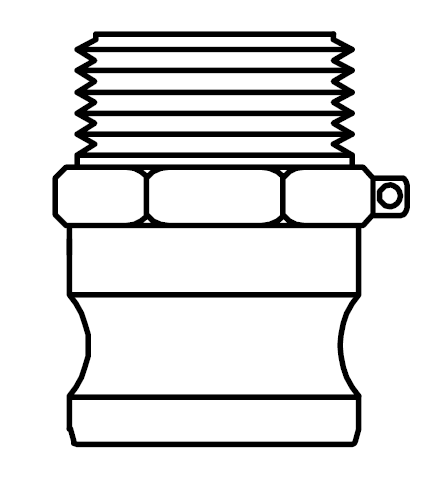

W70-CPLG-QK-4F

The camlock or cam and groove couplings are used to connect hoses to a pump or another piece of hose. The aluminum part F camlock is a male adaptor x male thread. 4" Male adaptor x Male Thread (MNPT)

W70-CPLG-QK-6A

The camlock or cam and groove couplings are used to connect hoses to a pump or another piece of hose. The aluminum part A camlock is a male adaptor x female thread. 6" Male adaptor x Female Thread

W70-CPLG-QK-6B

The camlock or cam and groove couplings are used to connect hoses to a pump or another piece of hose. The aluminum part B camlock is a female adaptor x male thread. 6" Female adaptor x Male Thread (MNPT)

W70-CPLG-QK-6D

The camlock or cam and groove couplings are used to connect hoses to a pump or another piece of hose. The aluminum part D camlock is a female adaptor x female thread. 6" Female adaptor x Female Thread

W70-CPLG-QK-6F

The camlock or cam and groove couplings are used to connect hoses to a pump or another piece of hose. The aluminum part F camlock is a male adaptor x male thread. 6" Male adaptor x Male Thread (MNPT)

W70-CPLG-QK-8A

The camlock or cam and groove couplings are used to connect hoses to a pump or another piece of hose. The aluminum part A camlock is a male adaptor x female thread. 8" Male adaptor x Female Thread

W70-CPLG-QK-8D

The camlock or cam and groove couplings are used to connect hoses to a pump or another piece of hose. The aluminum part D camlock is a female adaptor x female thread. 8" Female adaptor x Female Thread

4in medium-duty PVC discharge hose for general use, construction, bypass pumping and dewatering.

25FT SECTIONS

Camlock fittings (male x female)
W70-MP-4X25-CXE

Ball x socket fittings
W70-MP-4X25-BXS

50FT SECTIONS

Camlock fittings (male x female)
W70-MP-4X50-CXE

Ball x socket fittings
W70-MP-4X50-BXS

Specs: 125 max PSI, crimped

6in medium-duty PVC discharge hose for general use, construction, bypass pumping and dewatering.

25FT SECTIONS

Camlock fittings (male x female)
W70-MP-6X25-CXE

Ball x socket fittings
W70-MP-6X25-BXS

50FT SECTIONS

Camlock fittings (male x female)
W70-MP-6X50-CXE

Ball x socket fittings
W70-MP-6X50-BXS

Specs: 115 max PSI, crimped

8in medium-duty PVC discharge hose for general use, construction, bypass pumping and dewatering.

25FT SECTIONS

Camlock fittings (male x female)
W70-MP-8X25-CXE

Ball x socket fittings
W70-MP-8X25-BXS

50FT SECTIONS

Camlock fittings (male x female)
W70-MP-8X50-CXE

Ball x socket fittings
W70-MP-8X50-BXS

Specs: 75 max PSI, crimped

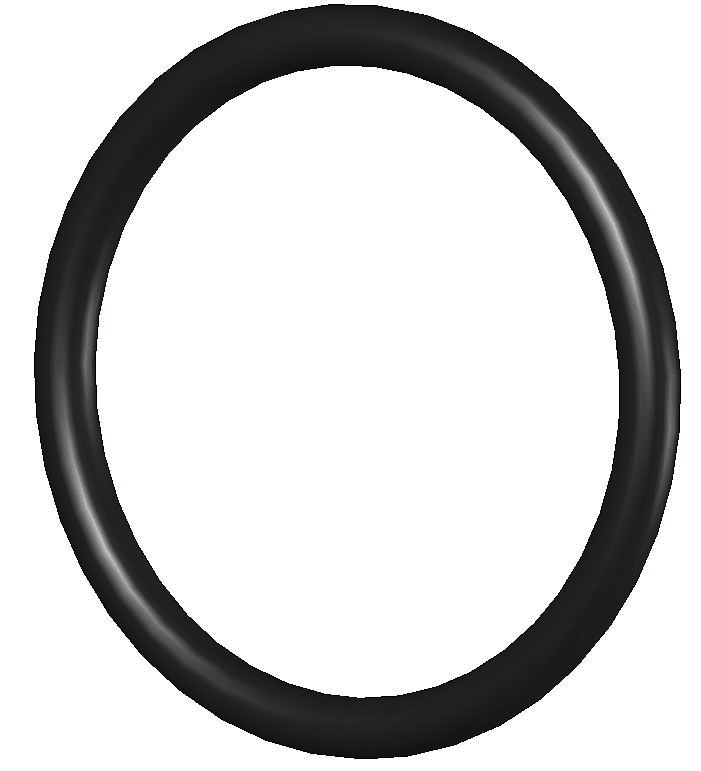

W70-RING-4B

4in Anti-oil rubber O-rings help secure a tight seal between the socket and ball fittings.

W70-RING-6B

6in Anti-oil rubber O-rings help secure a tight seal between the socket and ball fittings.

W70-RING-8B

8in Anti-oil rubber O-rings help secure a tight seal between the socket and ball fittings.

4in W70-STR-4SEW

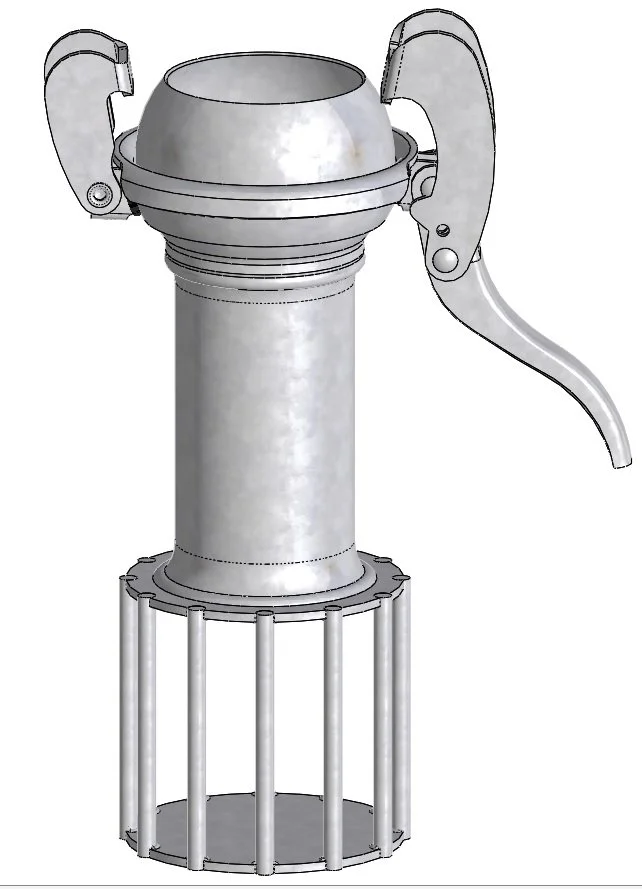

The 4in galvanized sewage strainer has a pillar design that allows for more water flow.  Welded steel rods give durability and strength for long term use. Equipped with ball and lever fitting for quick secure connection to suction hose.

W70-STR-6SEW

The 6in galvanized sewage strainer has a pillar design that allows for more water flow.  Welded steel rods give durability and strength for long term use.

W70-STR-8SEW

The 8in galvanized sewage strainer has a pillar design that allows for more water flow.  Welded steel rods give durability and strength for long term use.

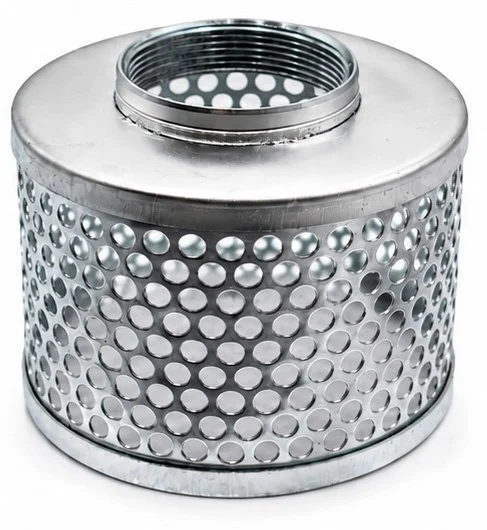

W70-STR-4RH

Built from corrosion-resistant stainless steel, this 4” round-hole strainer features precision male threads for a fast, secure connection to protect your pump from performance-disrupting debris.

W70-STR-6RH

Built from corrosion-resistant stainless steel, this 6” round-hole strainer features precision male threads for a fast, secure connection to protect your pump from performance-disrupting debris.

W70-STR-8RH

Built from corrosion-resistant stainless steel, this 8” round-hole strainer features precision male threads for a fast, secure connection to protect your pump from performance-disrupting debris.

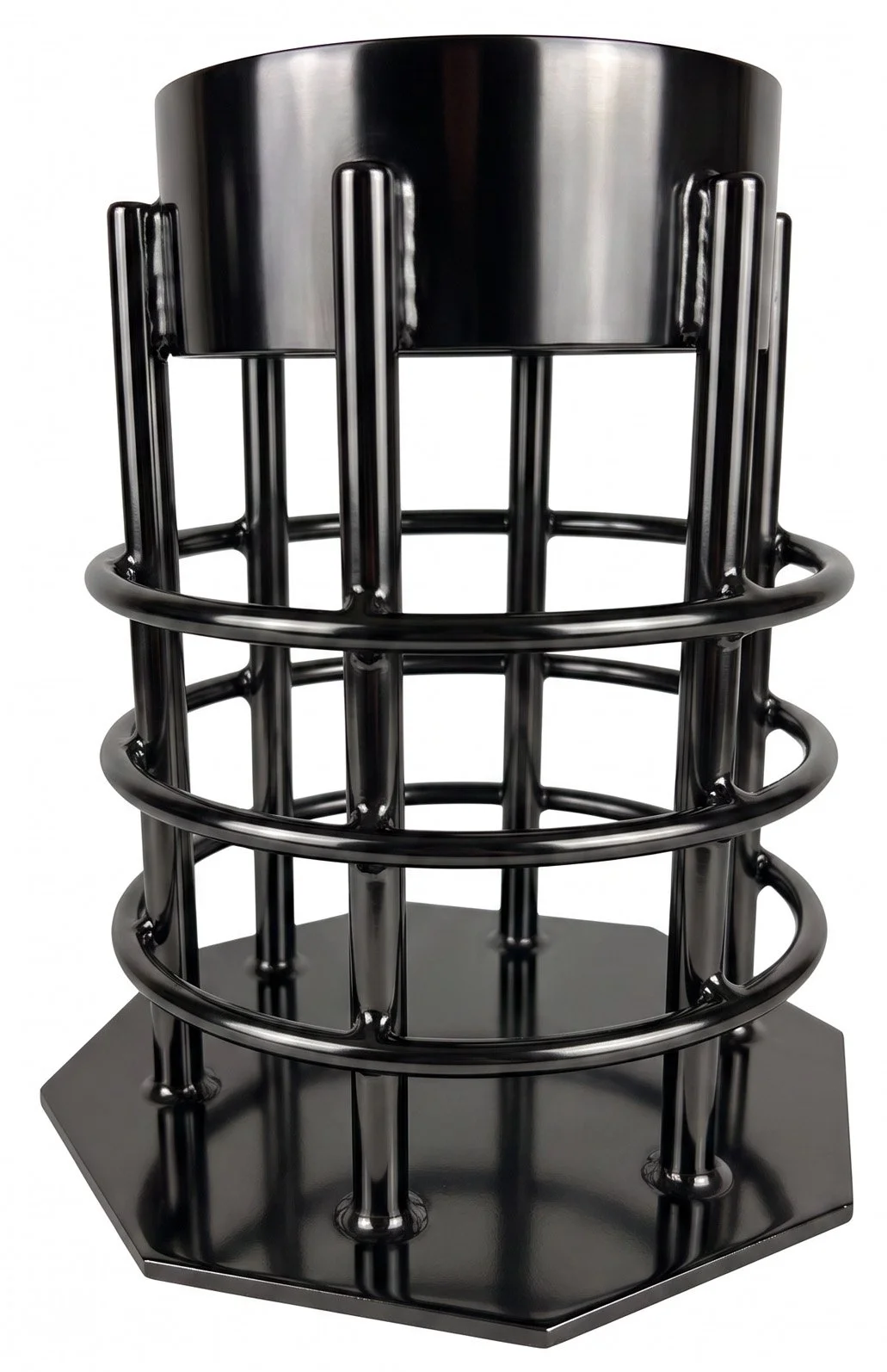

W70-STR-4HD

Designed for demanding waste and wastewater applications, the 4" Thompson heavy-duty sewage strainer features female pipe threads to deliver reliable clog protection and maintain peak pump performance in harsh environments.

W70-STR-6HD

Designed for demanding waste and wastewater applications, the 6" Thompson heavy-duty sewage strainer features female pipe threads to deliver reliable clog protection and maintain peak pump performance in harsh environments.

W70-STR-8HD

Designed for demanding waste and wastewater applications, the 8" Thompson heavy-duty sewage strainer features female pipe threads to deliver reliable clog protection and maintain peak pump performance in harsh environments.

W70-TEE-GALB-4S4B4B

This 4in galvanized steel portable light weight tee manifold is ideal for bypass pumping. This quick disconnect tee allows for the primary and stand by pumps to be connected to one discharge line.

Specs: Socket (with O ring) x Ball x Ball

W70-TEE-GALB-4S4S4B

This 4in galvanized steel portable light weight tee manifold is ideal for bypass pumping. This quick disconnect tee allows for the primary and stand by pumps to be connected to one discharge line.

Specs: Ball x Socket (with O ring) x Socket (with O ring)

W70-TEE-GALB-6S6B6B

This 6in galvanized steel portable light weight tee manifold is ideal for bypass pumping. This quick disconnect tee allows for the primary and stand by pumps to be connected to one discharge line.

Specs: Socket (with O ring) x Ball x Ball

W70-TEE-GALB-6S6S6B

This 6in galvanized steel portable light weight tee manifold is ideal for bypass pumping. This quick disconnect tee allows for the primary and stand by pumps to be connected to one discharge line.

Specs: Ball x Socket (with O ring) x Socket (with O ring)

W70-TEE-GALB-8S8B8B

This 8in galvanized steel portable light weight tee manifold is ideal for bypass pumping. This quick disconnect tee allows for the primary and stand by pumps to be connected to one discharge line.

Specs: Socket (with O ring) x Ball x Ball

W70-TEE-GALB-8S8S8B

This 8in galvanized steel portable light weight tee manifold is ideal for bypass pumping. This quick disconnect tee allows for the primary and stand by pumps to be connected to one discharge line.

Specs: Ball x Socket (with O ring) x Socket (with O ring)

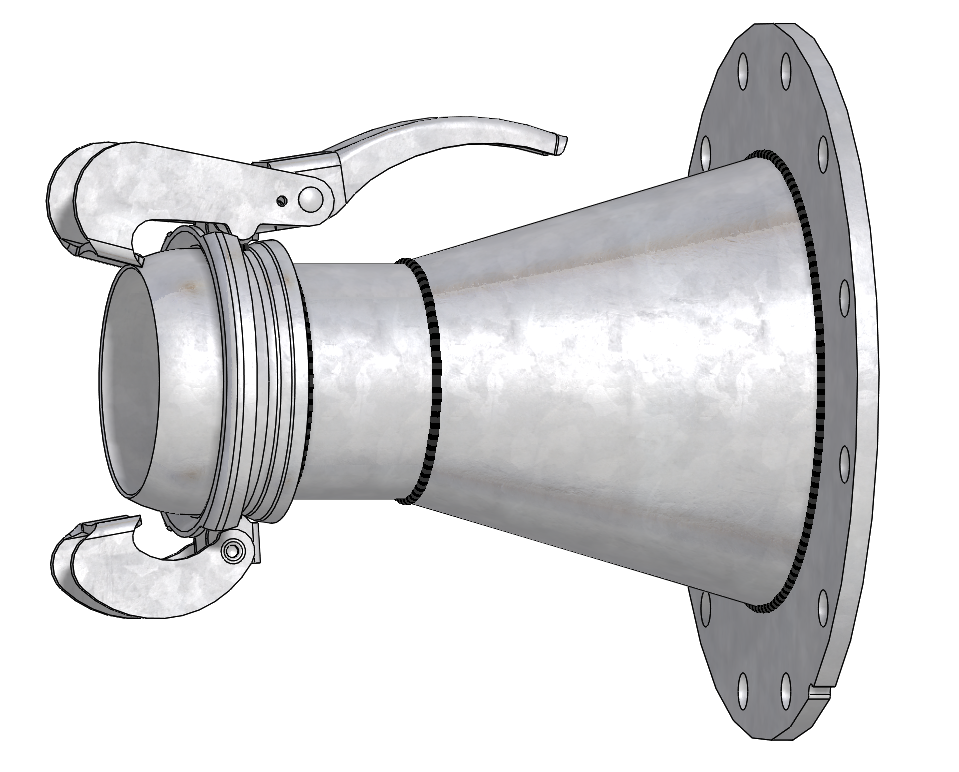

W70-RED-GAL-12FX6B

Galvanized steel reducers are used to help maximize pump performance.  This can be used as an adaptor to transition to a smaller size manifold, fitting or hose.

Specs: 12in Flange x 6in Ball

W70-RED-GAL-12FX6S

Galvanized steel reducers are used to help maximize pump performance.  This can be used as an adaptor to transition to a smaller size manifold, fitting or hose.

Specs: 12in Flange x 6in Socket

W70-RED-GAL-12FX8B

Galvanized steel reducers are used to help maximize pump performance.  This can be used as an adaptor to transition to a smaller size manifold, fitting or hose.

Specs: 12in Flange x 8in Ball

W70-RED-GAL-12FX8S

Galvanized steel reducers are used to help maximize pump performance.  This can be used as an adaptor to transition to a smaller size manifold, fitting or hose.

Specs: 12in Flange x 8in Socket

W70-RED-GAL-8FX6B

Galvanized steel reducers are used to help maximize pump performance.  This can be used as an adaptor to transition to a smaller size manifold, fitting or hose.

Specs: 8in Flange x 6in Ball

W70-RED-GAL-8FX6S

Galvanized steel reducers are used to help maximize pump performance.  This can be used as an adaptor to transition to a smaller size manifold, fitting or hose.

Specs: 8in Flange x 6in Socket

W70-RED-GAL-6FX4B

Galvanized steel reducers are used to help maximize pump performance.  This can be used as an adaptor to transition to a smaller size manifold, fitting or hose.

Specs: 6in Flange x 4in Ball

W70-RED-GAL-6FX4S

Galvanized steel reducers are used to help maximize pump performance.  This can be used as an adaptor to transition to a smaller size manifold, fitting or hose.

Specs: 6in Flange x 4in Socket

W70-RED-SOCK-12FX6G

Galvanized 12in flange x 6in slip x 6in slip x 6in slip reducer used for sock dewatering applications.  The 6in slip allows for easy attachment to the sock.

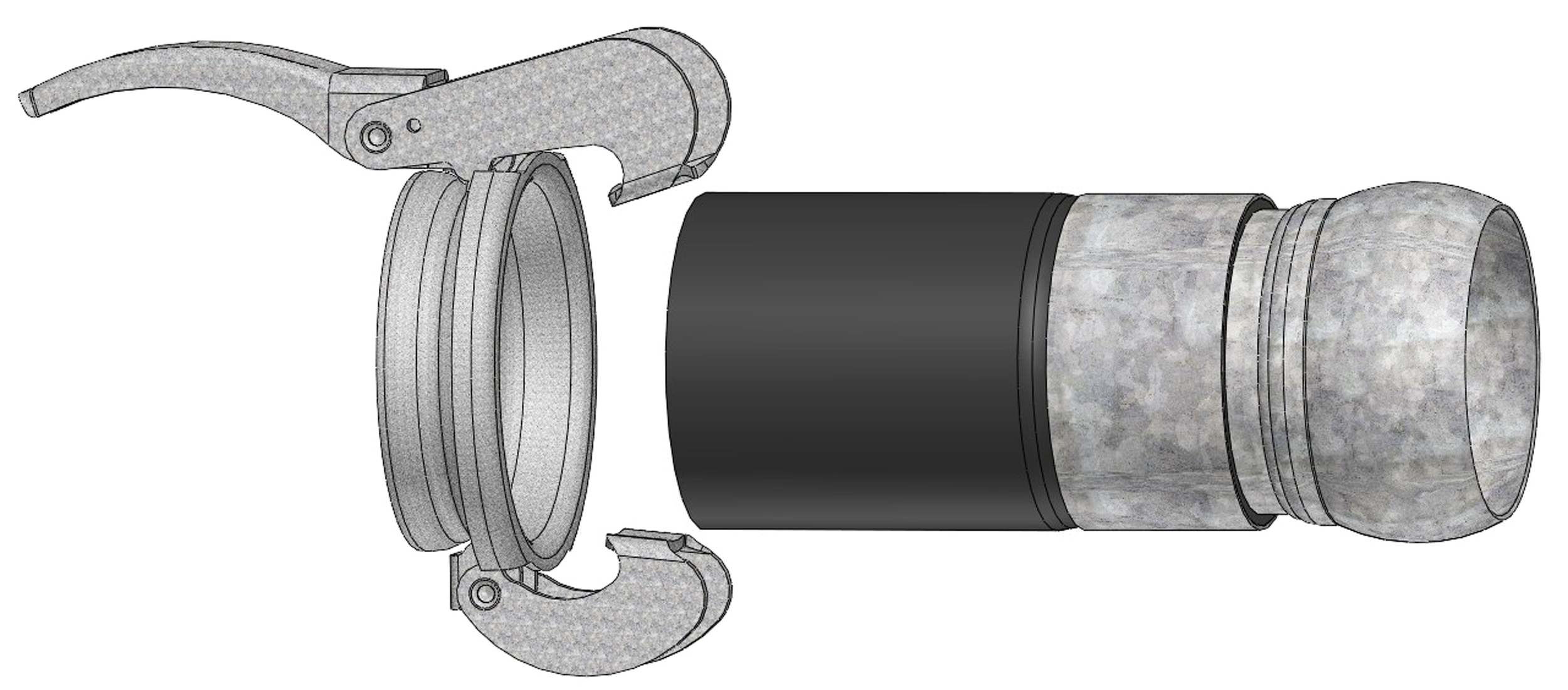

W70-PC12BXHDPE-17-B

The 12in ball with lever fitting is crimped to a HDPE SDR 17 tail.  This allows for customization to fuse to existing HDPE pipe setups or building HDPE components.  The HDPE pipe is corrosion resistant which makes it ideal for long term projects.

Specs: 12" diameter x 8" HDPE pipe tail

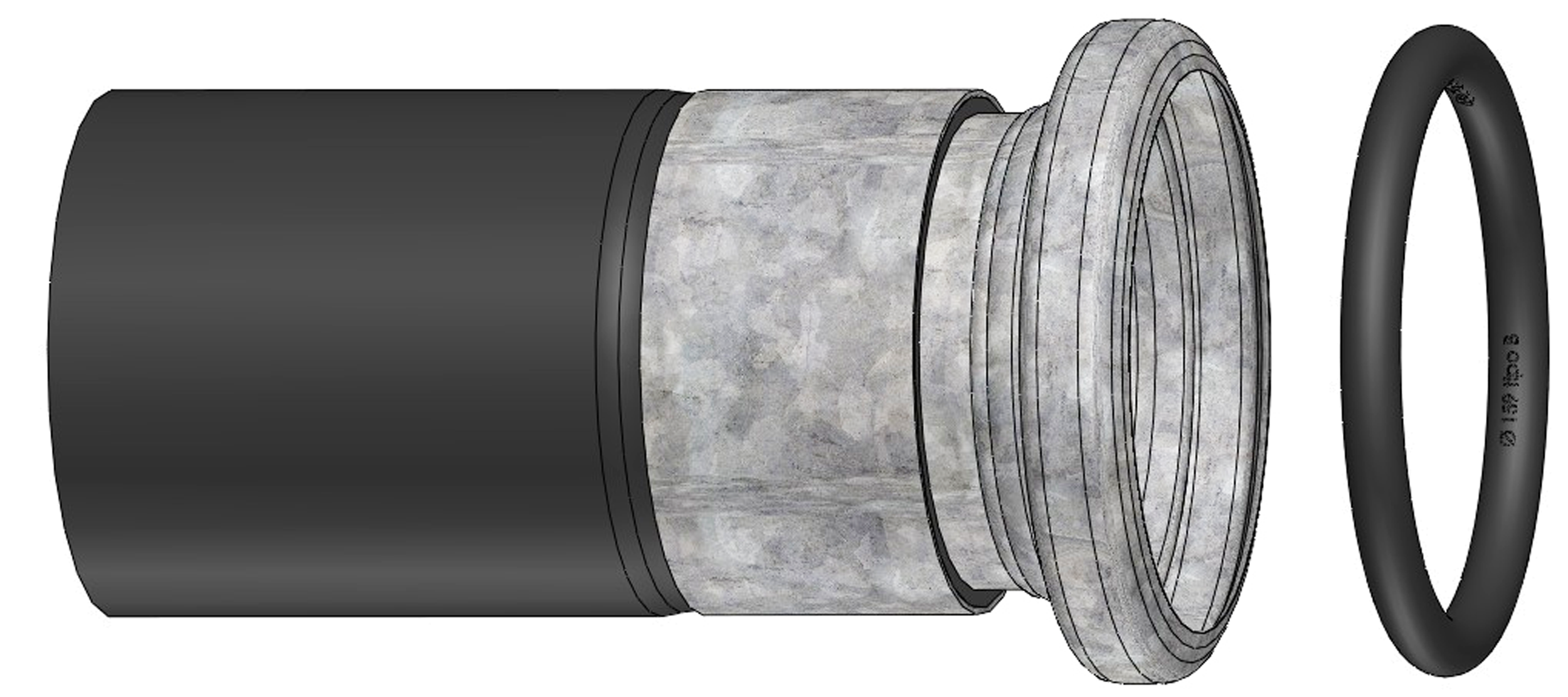

W70-PC12SXHDPE-17-B

The 12in socket with O ring fitting is crimped to a HDPE SDR 17 tail.  This allows for customization to fuse to existing HDPE pipe setups or building HDPE components.  The HDPE pipe is corrosion resistant which makes it ideal for long term projects.

Specs: 12" diameter x 8" HDPE pipe tail

W70-PC8BXHDPE-17-B

The 8in ball with lever fitting is crimped to a HDPE SDR 17 tail.  This allows for customization to fuse to existing HDPE pipe setups or building HDPE components.  The HDPE pipe is corrosion resistant which makes it ideal for long term projects.

Specs: 8" diameter x 8" HDPE pipe tail

W70-PC8SXHDPE-17-B

The 8in socket with O ring fitting is crimped to a HDPE SDR 17 tail.  This allows for customization to fuse to existing HDPE pipe setups or building HDPE components.  The HDPE pipe is corrosion resistant which makes it ideal for long term projects.

Specs: 8" diameter x 8" HDPE pipe tail

W70-PC6BXHDPE-17-B

The 6in ball with lever fitting is crimped to a HDPE SDR 17 tail.  This allows for customization to fuse to existing HDPE pipe setups or building HDPE components.  The HDPE pipe is corrosion resistant which makes it ideal for long term projects.

Specs: 6" diameter x 8" HDPE pipe tail

W70-PC6SXHDPE-17-B

The 8in socket with O ring fitting is crimped to a HDPE SDR 17 tail.  This allows for customization to fuse to existing HDPE pipe setups or building HDPE components.  The HDPE pipe is corrosion resistant which makes it ideal for long term projects.

Specs: 6" diameter x 8" HDPE pipe tail

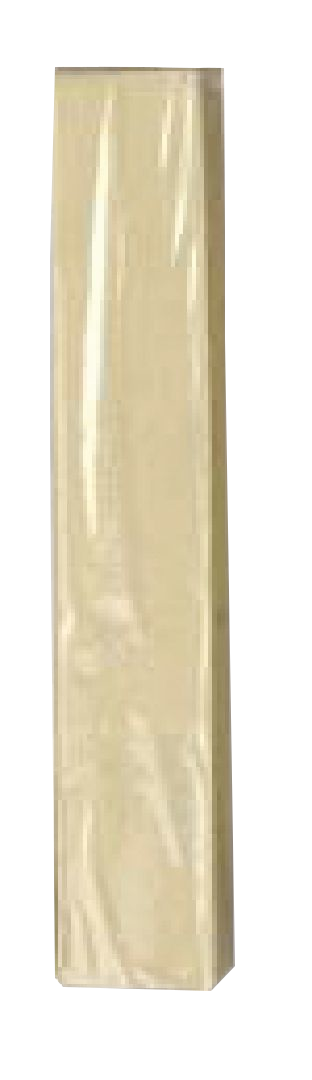

W70-WPT-CLAY

Used to patch and seal minor leaks or cracks in various parts of the wellpoint system, such as cracks in a header pipe, sealing the base of a swing to the valve. Available in 2-pound blocks.

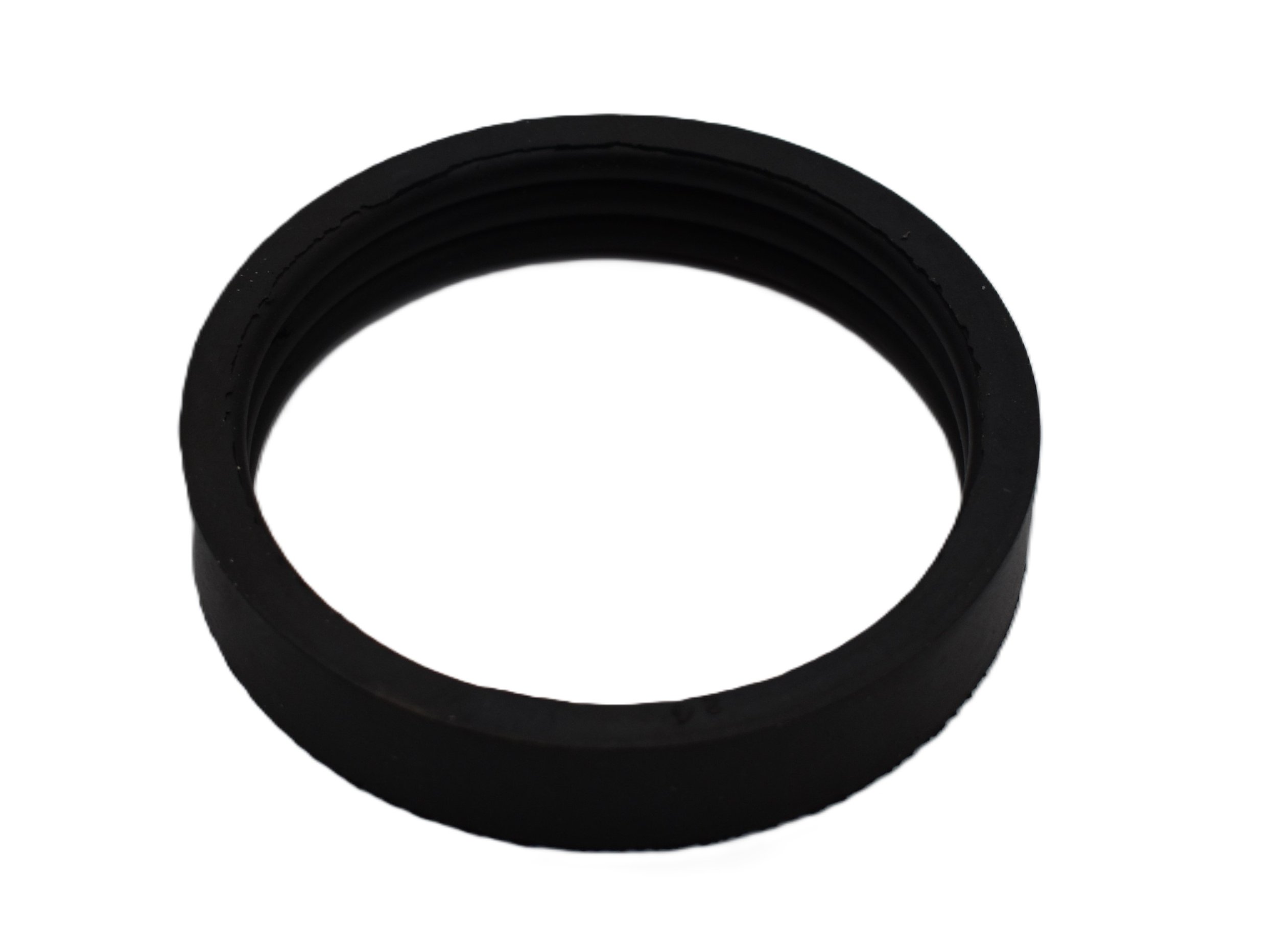

W70-WASH-RSR-RBR

The small washer fitted in the center of the aluminum riser top to create a seal with the swing joint on the other end.

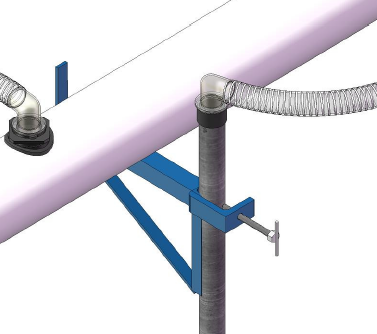

W70-HDR-SUPPORT

The bracket supports the header pipe using a vice that attaches to the steel riser pipe. This helps stabilize the system installation.

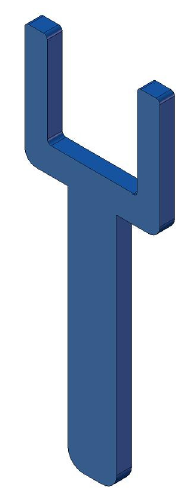

W70-WRENCH-VAL

This steel wrench is designed to open and close the valve on the Thompson style header pipe. The valves control the air flow into the header pipe from the wellpoints. This may also be referred to as tuning the system.

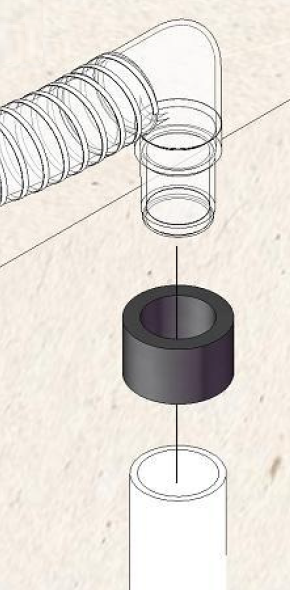

W70-TOP-RSR-V

Rubber cap for the PVC riser pipe and wellpoint that helps create an airtight seal between the swing and the riser pipe.

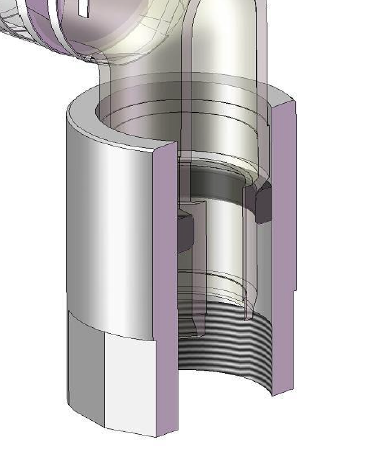

W70-TOP-RSR-A

The aluminum riser top is used with steel wellpoint and threaded to connect with the galvanized riser pipe.
